产品说明
| |
 |
产品编号：
|
DFB |
|
产品名称：
|
DFB系列特殊传感器（特殊电子天平） |
|
规 格：
|
DFB-600 DFB-6000 DFB-300 DFB-3000 |
|
产品备注：
|
传感器（特殊电子天平） |
|
产品类别：
|
日本SHINKO.VIBRA新光 |
| |
|
| 产 品 说 明 |
- Applicable to various built-in purposes with high rigid electromagnetic force balance sensor and optimum design.
-
- High resolution. 1/60,000 - 1/300,000
- Update: 10 times/sec. The fastest in this class
- Compact design
Pursuing the ideal of the Built-in sensor
- Slim design. Fit in a minimum 50mm interval space. (DFB-60)
- Easy installation by screwing from top
- Work platter for easily tare installing
- Mounted-in indicator with easy-to-read fluorescent display
- Tare value back up eliminates a loss of unexpected occasion
Suitable for the various measurement scenes
- Ideal for simultaneous measurement of displacement and force due to the null sensing system
- Selectable data-update 0.1 sec - 1.6 sec
- Featuring Droplet mode for the fine filling control
Convenient for PLC connection
- RS232C output. (Standard)
- BCD parallel output. (Option) Easy connection to PLC
- Selectable data - update

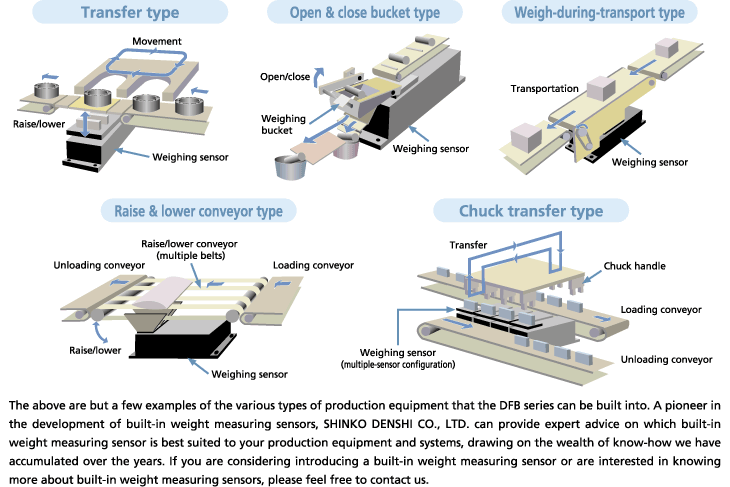

- Applications of the DFB series built-in weight measuring sensor
Sensor
| Model |
DFB-60 |
DFB-600 |
DFB-6000 |
DFB-300 |
DFB-3000 |
| Capacity |
60g |
600g |
6000g |
300g |
3000g |
| Readability |
0.001g |
0.01g |
0.1g |
0.001g |
0.01g |
| Repeatability |
0.001g |
0.01g |
0.1g |
0.002g |
0.02g |
| Non-Linearity |
±0.001g |
±0.01g |
±0.1g |
±0.003g |
±0.03g |
| Temparature coefficient |
±Max 8ppm/°C |
±Max 5ppm/°C |
| Housing |
SPCC. Heat Coating |
| Booseboard |
A5052 |
SUS304 |
A5052 |
SUS304 |
| Dust/Water proof |
IP43 |
| P.U. cable length |
5m |
| Sensor weight |
Approx. 1.3kg |
Approx. 1.9kg |
Approx. 4.5kg |
Approx. 1.8kg |
Approx. 4.5kg |
Indicator
| Model |
KD-1 |
| Display device |
7 segment, 6 digits display |
| Panel material |
PET (tough top) |
| Housing material |
SPCC, and A5052 I Heat Coating |
| Temperature / humidity |
0°C to 40°C, 80%R.H. or less |
| Data updating interval |
Approx.0.1 sec. to 1.6 sec. (Fix / auto-change) Selectable |
| Zero setting function |
Full range one touch |
| Zero setting backup function |
The value set to zero point can be saved |
| Data output |
RS232C Bi-directional Standard: 1200, 2400,4800,9600bps
(With Input terminal for remote zero setting) |
BCD Output (Option)
(With Remote zero setting / External hold input terminal) |
| Power |
24VDC (±10%), 0.3A |
| Weight |
Approx 3500g (including BCD output) |
|
|
