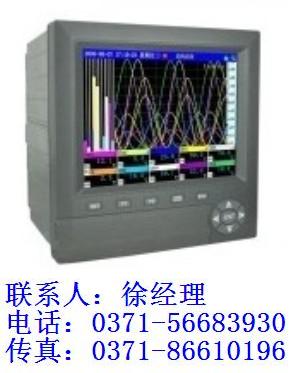

SWP-ASR215-0-1 香港昌晖无纸记录仪

郑州亚比兰仪器仪表有限公司

会员指数：

企业认证：

价格：电议

所在地：河南郑州市

型号：SWP-ASR215-0-1

更新时间：2016-10-12

浏览次数：1413

公司地址：河南省郑州市中原区长城新干线10号楼1604

0371-56683930 王琦(女士)

点击查看联系电话在线询价

产品简介

SWP-ASR204-1-0 SWP-ASR204-1-0/C2 SWP-ASR204-1-0/C3SWP-ASR204-1-1 SWP-ASR204-1-1/C2 SWP-ASR204-1-1/C3SWP-ASR204-2-0 SWP-A

公司简介

SWP香港昌晖，F&B福建百特工控，WP香港上润，HR-WP,NHR虹润仪表，麦克传感器代理

郑州亚比兰仪表仪器

展开

产品说明

SWP-ASR204-1-0 SWP-ASR204-1-0/C2 SWP-ASR204-1-0/C3
SWP-ASR204-1-1 SWP-ASR204-1-1/C2 SWP-ASR204-1-1/C3
SWP-ASR204-2-0 SWP-ASR204-2-0/C2 SWP-ASR204-2-0/C3
SWP-ASR204-2-1 SWP-ASR204-2-1/C2 SWP-ASR204-2-1/C3
SWP-ASR204-3-0 SWP-ASR204-3-0/C2 SWP-ASR204-3-0/C3
SWP-ASR204-3-1 SWP-ASR204-3-1/C2 SWP-ASR204-3-1/C3
SWP-ASR205-1-0 SWP-ASR205-1-0/C2 SWP-ASR205-1-0/C3
SWP-ASR205-1-1 SWP-ASR205-1-1/C2 SWP-ASR205-1-1/C3
SWP-ASR205-2-0 SWP-ASR205-2-0/C2 SWP-ASR205-2-0/C3
SWP-ASR205-2-1 SWP-ASR205-2-1/C2 SWP-ASR205-2-1/C3
SWP-ASR205-3-0 SWP-ASR205-3-0/C2 SWP-ASR205-3-0/C3

技术指标

规格				说明
输入	模拟量		热电偶	B、S、K、E、T、J、W
			RTD	PT100、CU50
			电压	DC 0-5V， DC 1-5V， DC 0-100mV， DC 0-20mV
			电流	DC 0-10mA，DC 4-20mA
	脉冲量			矩形/正弦/三角幅度≥ 4V 频率 0 — 15KHz
输出	模拟量		电流	0 — 10mA (负载≤750 Ω) 4 — 20mA (负载≤500 Ω)
			电压	0 — 5V (负载≥250 kΩ) 1 — 5V (负载≥250 kΩ)
	开关量		SSR	24VDC ±3V 30mA Max
			SCR	400V/0.
			继电器	AC 220V/3A或DC 24V/ (阻性负载)
	馈电			DC 24V / 60mA(多六路)
通讯	波特率			1200 — 115200pbs
	接口			RS232，RS485(共两路可同时选择)，带全隔离高速磁耦
	协议			MODBUS-RTU， SR-BUS(SWP仪表通讯协议)
精度				0.5 %FS±1字或 0.2%FS±1字
小信号切除				0 — 25.5%FS
测量范围				-1999 — 99999字
采样周期				0.25秒
记录间隔				1秒 — 4分钟之间以秒为单位共240档可供选择
参数设定				全中文菜单提示，通过按键或上位机通讯口设定
控制方式				可选择带回差的ON/OFF继电器触点输出(AC220V/3A)
打印功能				可外接面板式、台式带串口输出的40字符/行的宽行微型打印机(如TPμP-A40)，打印历史数据、曲线或实时数据。
显示方式				10.4寸LED背光大屏幕真彩液晶(640×480点阵)图形显示板由汉字、西文、趋势曲线、光柱等组成显示内容
报警功能				每个通道多可以设定4个报警点，每个报警点可选择上限、下限、变化率上限、变化率下限、差值下限和差值上限报警，可设置报警输出延时时间、报警回差、继电器触点输出(多36个继电器可用）、蜂鸣器输出，还可设置外接报警音响触点和报警屏自动切换功能，仪表保存新的2000条报警信息。
保护方式				设定参数保存，记录数据断电保存，内置看门狗电路，掉电时数据预先保存
语言				中文(简、繁体)、英文，内置GB2312二级汉字库，包含6500个汉字
使用环境		环境温度		-15 ℃— 60 ℃
		相对湿度		≤ 85%RH 、避免强腐蚀性气体
		电源电压		AC90 — 265V (50 — 60Hz)
安装		仪表尺寸		288×288×240 mm
		开孔尺寸		208⁺¹ ×208⁺¹ mm
		安装方式		卡条式固定架
功耗				≤ 25W
重量				约8600 g

型谱表

型号	规格代码			附加规格代码	说明
SWP-ASR2	□□ -□ -□			/□□□
采集通道数	01～48				可选01 ~48通道 ^*1
存储器容量（MB）		-1			32（标配）
		-2			64
		-3			128
显示语言			-0		简体中文（标配）
			-1		英文
			-2		繁体中文
			-3		多语言版（可在简、繁、英之间切换）
附加规格				/C2	^{2 3 4 6RS-232接口}
				/C3	^2 4 *6RS-485接口
				/P（1-3）	DC 24V馈电
				/AO（1-4）	模拟量输出路数 ^*5
				/F（1-4）	频率输入路数 ^*5
				/J（1-12）	（常开触点）继电器数
				/JB（1-8）	（常开、常闭触点）继电器数
				/L	带流量积算功能^*7
				/T	带天然气运算功能
				/U	带通用USB接口 ^*6
				/PID	带PID控制功能
				/Dxxx	为客户订制特殊功能 ^*6

*1 用户在选择通讯时可以同时选择两路，其中一路为RS-232，另一路为RS-232或RS-485。仪表通讯接口标配为9芯板式针，如用户需9芯板式孔接口可在定制时说明。

*2 必须选用40字符/行(如TPμP-A40) 的微型打印机。

*3 使用微型打印机时，必须配置RS-232 (/C2)接口。

*4 /AO和/F规格不能同时选用；带该类附件规格后，全可切输入信号多允许8路（否则可达12路）。

*5 如果用户选配通讯或U盘时，可配送分析软件。

*6 如用户有特殊功能开发需求的可以与我公司联系，可单独定制仪表功能，xxx为特殊定制功能的编码。

*7 多带6路积算功能。

型号对比

对比参数		ASR100系列	ASR200系列	ASR300系列	ASR400系列	ASR500系列
显示部分	液晶屏尺寸及类型	5.6寸真彩TFT屏 LED背光	10.4寸真彩TFT屏 CCFL背光	3.6寸真彩TFT屏 LED背光	3.6寸真彩TFT屏 LED背光	5.6寸蓝白TFT屏 LED背光
	显示分辨率	320×234	640×480	320×240	240×320	320×234
	多语言显示	支持简、繁、英以及多语言切换	支持简、繁、英以及多语言切换	支持简、繁、英以及多语言切换	支持简、繁、英以及多语言切换	支持简、繁、英以及多语言切换
	记录曲线显示	横向、纵向，模拟走纸，显示区域放大，自动切换画, 面，自定义分组	横向、纵向，模拟走纸，显示区域放大，自动切换画面，自定义分组	横向、纵向，模拟走纸，显示区域放大，自动切换画面，自定义分组	横向、纵向，模拟走纸，显示区域放大，自动切换画面，自定义分组	横向、纵向，模拟走纸，显示区域放大，自动切换画面，自定义分组
	屏保功能	有	有	有	有	有
	多种类型输入方式	拼音、数字、英文大小写、特殊字符	拼音、数字、英文大小写、特殊字符	拼音、数字、英文大小写、特殊字符	拼音、数字、英文大小写、特殊字符	拼音、数字、英文大小写、特殊字符
	定制开机画面	支持	支持	支持	支持	支持
	仪表配置图及接线图	有	有	有	有	有
	显示测量数据范围	-9999 ～ 99999	-9999 ～ 99999	-9999 ～ 99999	-9999 ～ 99999	-9999 ～ 99999
输入部分	zui大输入通道数	12	48	8	8	12
	信号全可切	支持	支持	支持	支持	支持
	测量度	0.2%FS±1字或 0.5%FS±1字	0.2%FS±1字或 0.5%FS±1字	0.2%FS±1字或 0.5%FS±1字	0.2%FS±1字或 0.5%FS±1字	0.2%FS±1字或 0.5%FS±1字
	zui小采样时间（s）	0.25	0.25	0.25	0.25	0.25
	zui小记录时间（s）	1	1	1	1	1
	自定义工位号及单位	支持	支持	支持	支持	支持
输出部分	zui大馈电路数	3	6	3	3	3
	zui大继电器数	12	24	6	6	12
	zui大变送输出路数	4	12	2	2	4
数据存储	基本FLASH容量（MB）	32	32	32	32	32
	zui大FLASH容量（GB）	1	1	1	1	1
	U盘转存	支持	支持	支持	支持	支持
通讯部分	RS232及RS485	支持（高速、全隔离）	支持（高速、全隔离）	支持（高速、全隔离）	支持（高速、全隔离）	支持（高速、全隔离）
	支持通讯协议	Modbus和SRbus	Modbus和SRbus	Modbus和SRbus	Modbus和SRbus	Modbus和SRbus
	打印功能	支持	支持	支持	支持	支持
	波特率（bps）	1200 ～ 115200	1200 ～ 115200	1200 ～ 115200	1200 ～ 115200	1200 ～ 115200
	zui大通讯口数	2	2	2	2	2
电源	供电（v）	AC 90～265	AC 90～265	AC 90～265	AC 90～265	AC 90～265
电源	功耗（w）	≦20	≦40	≦15	≦15	≦20
扩展部分	通道运算功能	支持	支持	支持	支持	支持
	流量、热能积算（带温、压补偿）	支持	支持	支持	支持	支持
	流量报表功能	有	有	有	有	有
	上位机分析软件	有	有	有	有	有
其它部分	重量（g）	3000	8600	2000	2000	3000
	安装方式	卡条安装	卡条安装	卡条安装	卡条安装	卡条安装
	开孔尺寸（mm）	138⁺¹×138⁺¹	208⁺¹×208⁺¹	151⁺¹×76⁺¹	76⁺¹×151⁺¹	138⁺¹×138⁺¹
	外形尺寸（mm）	144×144×180	288×288×240	160×80×183	80×160×183	144×144×180
