型号:5185307T9-SS-A 赛多利斯PTFE膜(1盒) 库号：M324686

赛多利斯PTFE膜(1盒) 库号：M324686

东方化玻（北京）科技有限公司成立于 2014 年，是实验设备、平台综合解决方案提供商。公司为国内企事业单位 提供高品质仪器仪表，实验设备以及整体解决方案。 公司与国内外多家世界生产商已建立长期合作关系。公司经营产品广泛，灵活满足不同事业单位和企业客户的差异化需求 以及快速创新的追求，产品故障率低，维护成本小，性能优异，售后服务完善。公司产品在行业内均拥有持续的应用历史并 经过市场实际应用检验。 坚持以持续技术创新为客户不断创造价值为经营理念，公司在产品研发方面投入比例逐年递增，目前自主研发并投入市场 的产品已达十余种，长期以来，公司一直按照标准，搭建实验室平台，构建高品质、高标准、持续创新的发展体系。 坚持稳步发展的管理理念，不断刷新自己在业内的记录。

赛多利斯PTFE膜(1盒) 库号：M324686
赛多利斯PTFE膜(1盒) 库号：M324686
赛多利斯PTFE膜(1盒) 库号：M324686

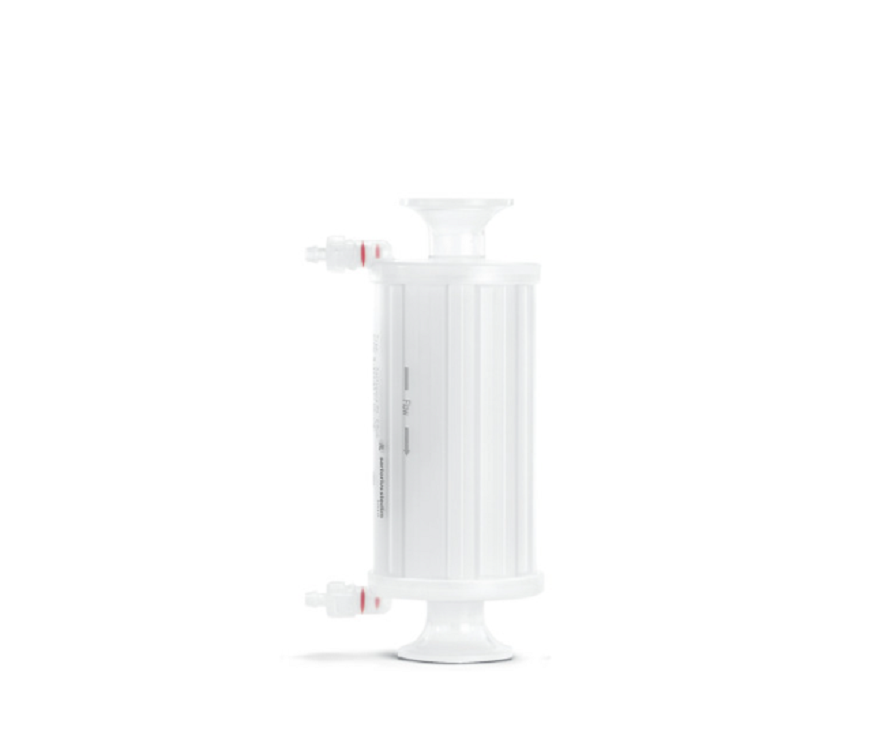

赛多利斯PTFE膜
PTFE>0.2>4PCS/1PACK
货号：5185307T9---SS---A
规格：4个/盒
重量约1.5公斤

Sartoflu ®是适合所有需要无菌空气的应用的解决方案。单层 PTFE 膜结构可确保经过验证的无菌性，同时在各种操作条件下提供大流量。的可以使空气/气体和溶剂过滤的拥有成本低。

Sartofluor® are sterilizing grade air & gas filters that utilize Polytetrafluorethylene (PTFE) membranes. PTFE is a chemically extremely resistant membrane material which is also suitable for highly aggressive solvents. The optimized construction leads to a perfect hydrodynamic flow. Requirements of Air/Gas Filtration The air filter as a barrier needs to be highly reliable under all circumstances, i.e. pressure pulses, high steaming cycles, elevated moisture content etc. That’s why we optimized our Sartofluor® air filter cartridges to meet all the requirements with highest assurance levels. Highest hydrophobicity High flow rates at low differential pressures High steam cycle lifetimes High mechanical and thermal strength Reliable and validated separation of microorganisms and bacteriophage User-Optimized The development of this extremely reliable, secure, “last chance” barrier filter included the experiences of our Research and Development, engineering groups, suppliers, and especially our customers. Their input was and is our most valuable resource to find the optimum performance. Optimum choice for sterile venting and gas applications Sterile gas filtration of fermenter inlets Off-gas filters downstream of fermenters or bioreactors Sterilizing vent filters on autoclaves and Iyophylizers (freeze dryer) Sterile vent filters on product tanks Sterile air supply for service gases, such as filling lines in blow-fill-seal machines Sartofluor® cartridges are available in the optimum range of pore sizes – 0.45 µm, 0.2 µm and 0.1 µm. Dependable performance at every scale Our scale-up philosophy does not stop at liquid filtration. Especially in air filtration, with its variety of applications and demands, different filter sizes are essential. Sartofluor® filter cartridges are available from 300 m² to 2.3 cm² for single filter elements, which means you can effectively filter air from small volume bioreactor to seed and large scale fermenter venting, as well as tank venting. The right hydrophobicity If the filter membrane is not hydrophobic enough, moisture can accumulate and microorganisms may grow. A highly hydrophobic membrane can eliminate this danger along with any risk of water logging. Sartofluor membranes are constructed of PTFE. It provides more than twice the hydrophobicity of polypropylene or PVDF. Optimized construction adds savings Experience, testing and customer feedback have guided the evolution of Sartofluor cartridges. For example, membrane pleatings and layers of filter fleece have been chosen to avoid water logging. Attention to detail at this level means you realize added savings in low blow down times. Mechanical strength and optimized construction We‘ve tested Sartofluor cartridges to 134°C and they all withstood 150 steam cycles. No loss in integrity or performance. Or in PTFE hydrophobicity. No loss in flow rate. Plus, optimized Sartofluor cartridge construction allows differential pressures up to 0.5 bar at 134°C. This exceptional performance has been confirmed by Bacterial Challenge testing. No water blockage. High flow rates. Maximum savings. In air filtration applications, high flow rates result in lower energy costs and help to maximize safety – for example, for tank, venting. Sartofluor® cartridges are optimized to maintain high flow rates, even in challenging process conditions like condensate build-up in steam-venting or elevated moisture content. No cartridge does more to control life-cycle costs. No cartridge system is more cost-effective. The Reason: Sartofluor® PTFE membrane and support fleece are extremely hydrophobic and feature optimized pleat density. The Result: effective drainage of condensate and no water blockage. Validated performance for assured security Sartofluor® cartridges fulfill all known current regulatory requirements, for example USP, cGMP and FDA. This is documented in our Validation Guidelines for Sartofluor filter cartridges. Besides the validation, Sartofluor® cartridges undergo a stringent performance qualification procedure: They’re pressure-pulsation tested for 5000 cycles at 5 bar differential pressure. They’re steam-cycle evaluated for 150 cycles at 134°C for 30 min; then 11 additional cycles over 7 hours. Their flow rate and water penetration are measured only after defined steam cycling. They’re tested at maximum allowable differential pressure at a full range of temperatures. Their blow-down time is measured after steam sterilization and Water Intrusion Testing. They pass extractable tests done using RP-HPLC, GC-MS and FTIR. They pass phage challenge tests that last as long as 7 days.

Applications
Industry
Pharma / Biotech
Biological Information
Bacterial Retention
Quantitative Retention of 1 × E7 CFU/cm² Brevundimonas Diminuta ATCC® 19146 per ASTM methodology
Compliance Information
Bacterial Endotoxins
< 0.25 EU/mL as determined by the LAL test
Biological Reactivity
All materials of this filter element meet the requirements of the current USP Biological Reactivity tests <88> for plastics Class VI (Systemic Injection, Intracutaneous and Implantation tests).
Extractables
The total amount of extractables is well below the limits established by the current USP unter "Sterile Water for Injection".
Connections (Physical)
Connector Inlet
1.5" Tri-Clamp 50 mm
Connector Outlet
1.5" Tri-Clamp 50 mm
Dimensions
Filter Size
size 9 (0.2 m² / 2.2 ft²)
Filtration Area
0.2 m²
General Specifications
Capsule/Cartridge Format
Midicaps®
Maximum Diffusion
4 mL/min at 0.7 bar
Minimum Required Bubble Point
1.0 bar | 14.5 psi
Materials of Construction
Housing Material
Polypropylene (PP)
Material o-ring | seal
Silicone (SI)
Support Fleece
Polypropylene (PP)
Operating Conditions
Maximum Differential Pressure
20 °C: 5 bar; 50 °C: 3 bar
Physicochemical Information
Non-Fiber Releasing
This filter product complies with the title 21 of the Code of Federal Regulations (CFR), section 210.3(b)(6) and 211.72.
Pore Size Final-filter
0.2 µm
Product Information
Brand
Sartofluor®
Sterility
Sterilization Method
Autoclavable
Usage Protocols
Sterilization Procedures
Autoclaving: Min. 25 cycles at max. 134 °C, 2 bar | 29 psi, 30 min.
