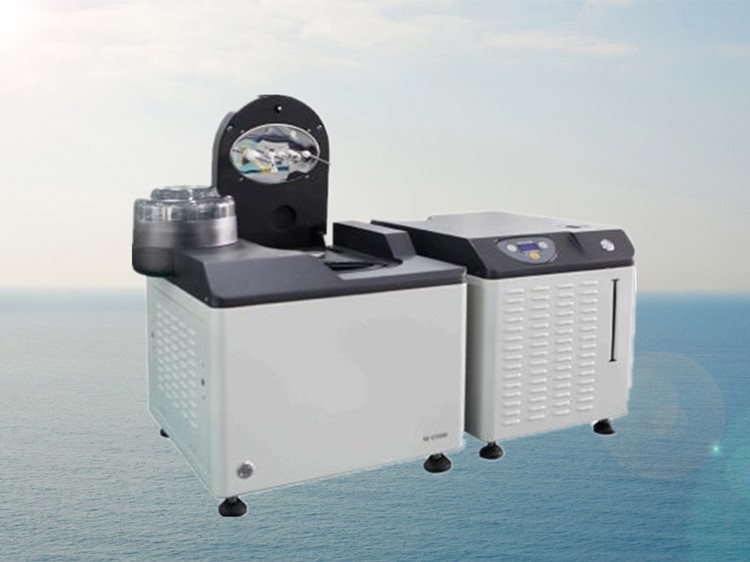

型号:5E-C5500 量热仪 库号：M363254

量热仪 库号：M363254

东方化玻（北京）科技有限公司成立于 2014 年，是实验设备、平台综合解决方案提供商。公司为国内企事业单位 提供高品质仪器仪表，实验设备以及整体解决方案。 公司与国内外多家世界生产商已建立长期合作关系。公司经营产品广泛，灵活满足不同事业单位和企业客户的差异化需求 以及快速创新的追求，产品故障率低，维护成本小，性能优异，售后服务完善。公司产品在行业内均拥有持续的应用历史并 经过市场实际应用检验。 坚持以持续技术创新为客户不断创造价值为经营理念，公司在产品研发方面投入比例逐年递增，目前自主研发并投入市场 的产品已达十余种，长期以来，公司一直按照标准，搭建实验室平台，构建高品质、高标准、持续创新的发展体系。 坚持稳步发展的管理理念，不断刷新自己在业内的记录。

量热仪 库号：M363254
量热仪 库号：M363254
量热仪 库号：M363254
Features
True Isoperibol Calorimeter
High Automation and Efficiency
Optimized Design for Reliable Test Result
The jacket surrounding the vessel is kept at constant temperature with an accuracy to 0.1°C
during analysis. Supports for the vessel are made of a very low thermal conductivity plastic.
To minimize heat convection, water is added on the sides, top and bottom of the bucket.
1. A reliable quantitative measuring cup ensures stable water volume of the bucket.
2. Closed-loop water circulation assures the purity of water system without any additional
solution.
3. Filter in the bucket purify the water in circulation system.
4. Visible water level indicates the water volume, making it easy to feed sufficient water
anytime to minimize the influence of water loss.
Calibrate Mass, g Temperature Rise °C or °F as-determined Heat Capacity units
0.8207 2.1783 ℃ 9885 J/K
0.8115 2.1811 ℃ 9887 J/K
0.8881 2.3862 ℃ 9888 J/K
0.9111 2.4498 ℃ 9880 J/K
0.9746 2.6188 ℃ 9885 J/K
0.9965 2.6735 ℃ 9878 J/K
1.0957 2.9393 ℃ 9879 J/K
1.2052 3.2391 ℃ 9880 J/K
1.1251 3.0238 ℃ 9889 J/K
1.2214 3.2827 ℃ 9879 J/K
Average: 9883J/K RSD:0.043%
T
Remark: ASTM-D5865, the precision of ten acceptable calibration test runs shall have a relative standard
deviation (RSD) no greater than 0.17% and CKIC’s specification is less than 0.05%RSD.
Conclusion: 5E-C5500 Automatic Calorimeter exceeds the ASTM precision requirement.
MODEL：5E-C5500
Conforms to Method AS 1038.5, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN 15400, GB/T 213,GB/T 30727,
ISO 1928, ISO 9831,ISO 18125
Precision (1g Benzoic Acid) 0.05% RSD*
Measuring Range Up to 50000J
Temp. Resolution 0.0001°C
Control Ability 2 Units / 1 PC available
Analysis Time per Sample：Dynamic method:10mins,
Classical method:15mins
Jacket Type ：Isoperibol
Ignition Method：Ignition Wire
Vessel Identification Yes
Heat Capacity Stability ≤0.2% within one year
Balance Connection Available
Network Connection Available
Bucket Filling Automatic
Oxygen Filling：Semi-Automatic
Structure：Benchtop/Vertical
Bomb Vessel Lifting：Manual
Power Supply：Single phase, AC220±10%, 50/60Hz, ≤500W
Net Weight：ench top: 75kg Vertical type: 103kg
Dimensions (L×W×H)Bench top:
480×500×420mm
(Analysis Unit )
370×500×420mm
(Temp. Control Unit)
Analysis unit:
580×550×550mm

Vertical:
480×400×940mm
