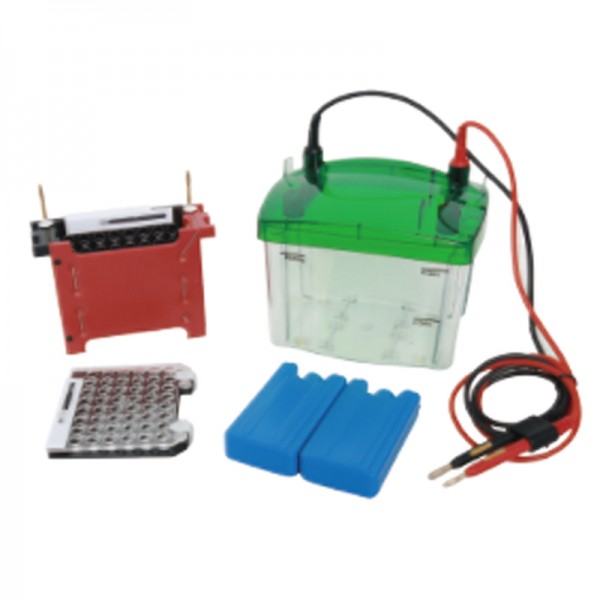

北京龙方LF-ZY02转印电泳槽 硝酸纤维素电泳仪

北京龙方LF-ZY02转印电泳槽 硝酸纤维素电泳仪产品特点：仪器重量：2.0 Kg外形尺寸：120 x 160 x 180 mm产品用途：将蛋白凝胶电泳中的条带转印到硝酸纤维素等薄膜上进口高强度PC材料注塑成型，透明度高，坚固耐用；1小时内转印2块75mm×100mm凝胶，也可进行低强度过夜转印；铂金电极丝相距40mm，以产生强电场保证蛋白转印效

名  称：转印电泳槽

型  号：LF-ZY02

品  牌：北京龙方

北京龙方LF-ZY02转印电泳槽 硝酸纤维素电泳仪产品特点：

仪器重量：2.0 Kg

外形尺寸：120 x 160 x 180 mm

产品用途：将蛋白凝胶电泳中的条带转印到硝酸纤维素等薄膜上

进口高强度PC材料注塑成型，透明度高，坚固耐用；

1小时内转印2块75mm×100mm凝胶，也可进行低强度过夜转印；

铂金电极丝相距40mm，以产生强电场保证蛋白转印效果；

颜色标记的转印三明治夹和电极，确保转印过程中凝胶的正确定向；

内置蓝冰冰盒，可快速吸收转印电泳过程中产生的热量；

可以独立使用，又可作为一个模块与LF-Mini4电泳槽的缓冲液槽和上盖兼容；

北京龙方LF-ZY02转印电泳槽 硝酸纤维素电泳仪技术参数：

电泳槽正负电极的铂金丝直径均为0.3mm，纯度为99.95%；

转印方式：湿转；转印面积：75 ×100mm；

转印凝胶数量：2 ；缓冲液容积：450ml；

铂金电极丝间距：40mm；转印时间： 60 分钟；

冷却方式： 蓝冰冰盒；

The English version of the product introduction：

LF-ZY02 transfer electrophoresis tank

Instrument weight: 2.0 Kg

Dimensions: 120 x 160 x 180 mm

Product use: transfer the bands in protein gel electrophoresis to nitrocellulose and other films

Features:

imported high-strength PC material injection molding, high transparency, durable;

Transfer 2 pieces of 75mm×100mm gel within 1 hour, and also can perform low-intensity overnight transfer;

The platinum electrode wires are separated by 40mm to generate a strong electric field to ensure the protein transfer effect;

Color-coded transfer sandwich clips and electrodes to ensure proper orientation of the gel during transfer;

Built-in blue ice ice box, which can quickly absorb the heat generated during transfer electrophoresis;

It can be used independently or as a module compatible with the buffer tank and top cover of the LF-Mini4 electrophoresis tank;

technical parameter:

The diameter of the platinum wire of the positive and negative electrodes of the electrophoresis tank is 0.3mm, and the purity is 99.95%;

Transfer method: wet transfer; transfer area: 75 × 100mm;

Transfer gel quantity: 2; buffer volume: 450ml;

Platinum electrode wire spacing: 40mm; transfer time: 60 minutes;

Cooling method: blue ice ice box;
