产品说明
| |
 |

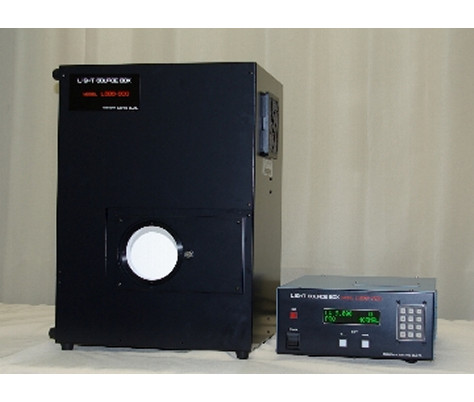

TSUBOSAKA 日本壶板电机系列光源箱
Uniform Standard Light Source Box LSBS-300T
|
|
|
| * |
Arbitrary luminance output |
| * |
Ideal uniform diffusion light source |
| * |
Uneven luminance value 90 degrees less than ±2% |
| * |
Luminance value change speed is fast |
| * |
With LV and cd/m2 change |
| * |
Maintenance free by quantity of light feed back control |
|
|
| Specifications |
| Luminance value |
[A light Source]2.5cd/m2-20000cd/m2
(LV4-LV17)[0.1LV 1.31 step]1/1000LV can entry |
| B Luminance Surface |
φ100 mm (Integral sphere φ300 mm) |
| Uneven Luminance Value |
90 degrees MAX 2% |
| Color Temperature |
[A light source]3100K±150K |
| Light Source Lamp |
Halogen lamp 24V-250W |
| Quantity of Light Servo-mechanism |
Luminance feedback mechanism |
| Luminance Variable |
1.Arbitrary luminance select method: Summons of arbitrary luminance by 10 key.
2.Pitch variable method: Summonses consecutive by setting pitch of pitch select (0.1~1.0LV).
3.Memory select method: Memorizes arbitrary 99 points luminance, and summons it sequentially.
4.Control by RS232C |
| Measuring Environment |
[Temperature]0ºC-40ºC[Humidity]MAX 95% |
| Power Supply |
AC100, 110, 220V. 50/60 Hz |
| Power Consumption |
About 150VA |
| Dimensions&Weight |
Light source part 550(W)x470(H)x530(D),15kg
Control part 282(W)x135(H)x350(D),7kg |
|
|
|
|
|
