产品说明

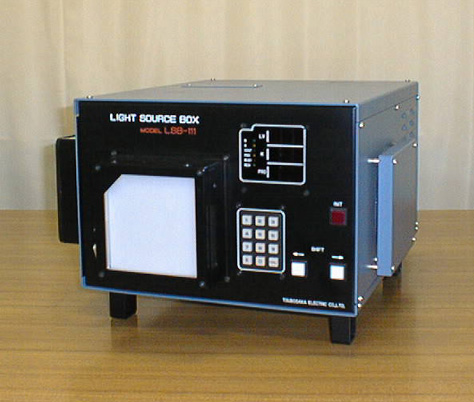

Light Source Box LSB-111B
|
|
|
| * |
Assures stable optional luminance with B light source |
| * |
Selectable color temperature |
| * |
Stable luminance by quantity of light servo-mechanism. |
|
|
| Specifications |
| Luminance value |
Light Source Box(Diffused flat light) |
| B Luminance value |
2.23cd/m2-3240cd/m2(LV4-LV14.5) |
| Color temperature |
|
| B Color temperature |
4870K±150K(Option 5500K) |
| Luminance surface |
100mmx100mm |
| Uneven luminance value |
MAX±2.5%(±LV0.04) |
| Light source lamp |
Halogen |
| Lighting |
Stabilizing light source |
| Selection of luminance |
10 key, LV0.1 step, External communication |
| Light volume servo-mechanism |
Feedback system |
| A Light Source/B Light Source change |
|
| Power supply |
AC100-220V,50/60Hz |
| Power consumption |
480VA |
| Dimensions&Weight |
365(W)x256(H)x427(D),20kg |
| External control |
RS232C(USB) |
|
|
