产品说明

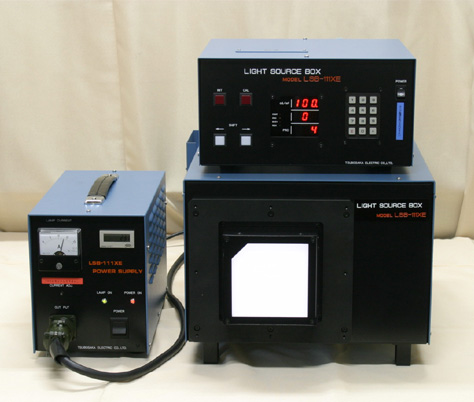

TSUBOSAKA 日本壶板电机系列光源箱
Light Source Box LSB-111XEKY
|
|
|
| * |
Similar to natural daylight |
| * |
Luminance value out of wide range |
| * |
Assures stable optional luminance |
| * |
Stable luminance by quantity of light servo-mechanism |
|
|
| Specifications |
| Luminance value |
|
| B Luminance value |
0.1cd/m2-10000cd/m2 |
| Color temperature |
|
| B Color temperature |
4870K±150K(Option 5500K) |
| Luminance surface |
100mmx100mm |
| Uneven luminance value |
MAX±2.5%(±LV0.04) |
| Light source lamp |
Xenon short arc lamp |
| Lighting |
Electric current control |
| Selection of luminance |
10 key, LV0.1 step, External communication |
| Light volume servo-mechanism |
Feedback system |
| A Light Source/B Light Source change |
|
| Power supply |
AC90-110V,50/60Hz |
| Power consumption |
600VA |
| Dimensions&Weight |
Control BOX 287x160x275mm7.5kg
Light source unit 350x272x483mm19kg
Power supply unit 165x220x350mm5kg |
| External control |
RS232C(USB) |
|
|
