产品说明
TSUBOSAKA 日本壶板电机系列光源箱

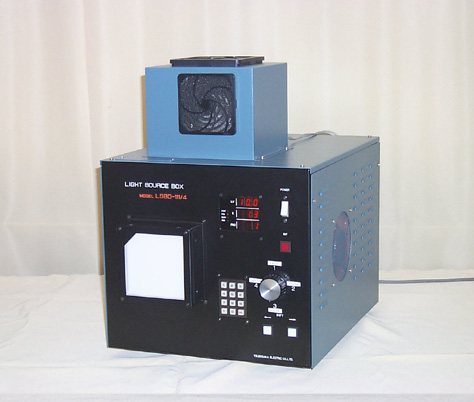

Light Source Box LSBD-111/4
|
|
|
| * |
Four color temperature |
| * |
Assures stable optional luminance |
| * |
Stable luminance by light volume servo-mechanism |
|
|
| Specifications |
| Luminance value |
[1]2.24cd/m2-18300cd/m2(LV4-LV17)[2]2.24cd/m2-9160cd/m2(LV4-LV16)(Selectable) |
| B Luminance value |
[3]2.24cd/m2-3240cd/m2(LV4-LV14.5)[4]2.24cd/m2-2290cd/m2(LV4-LV14) |
| Color temperature |
[1]2854K +100K/-100K[2]3200K+150K/-150K |
| B Color temperature |
[3]4870K +200K/-200K[4]5500K+300K/-300K |
| Luminance surface |
100mmx100mm |
| Uneven luminance value |
MAX±2.5%(±LV0.04) |
| Light source lamp |
Halogen |
| Lighting |
Stabilizing light source |
| Selection of luminance |
10 key, LV0.1 step,RS232C communication |
| Light volume servo-mechanism |
Feedback system |
| Color temperature change |
Hand-operated rotary knob |
| Power supply |
AC100,110,220V,50/60Hz |
| Power consumption |
500VA |
| Dimensions&Weight |
400(W)x485(H)x430(D),24.5kg |
| External control |
RS232C(USB) |
|
|
