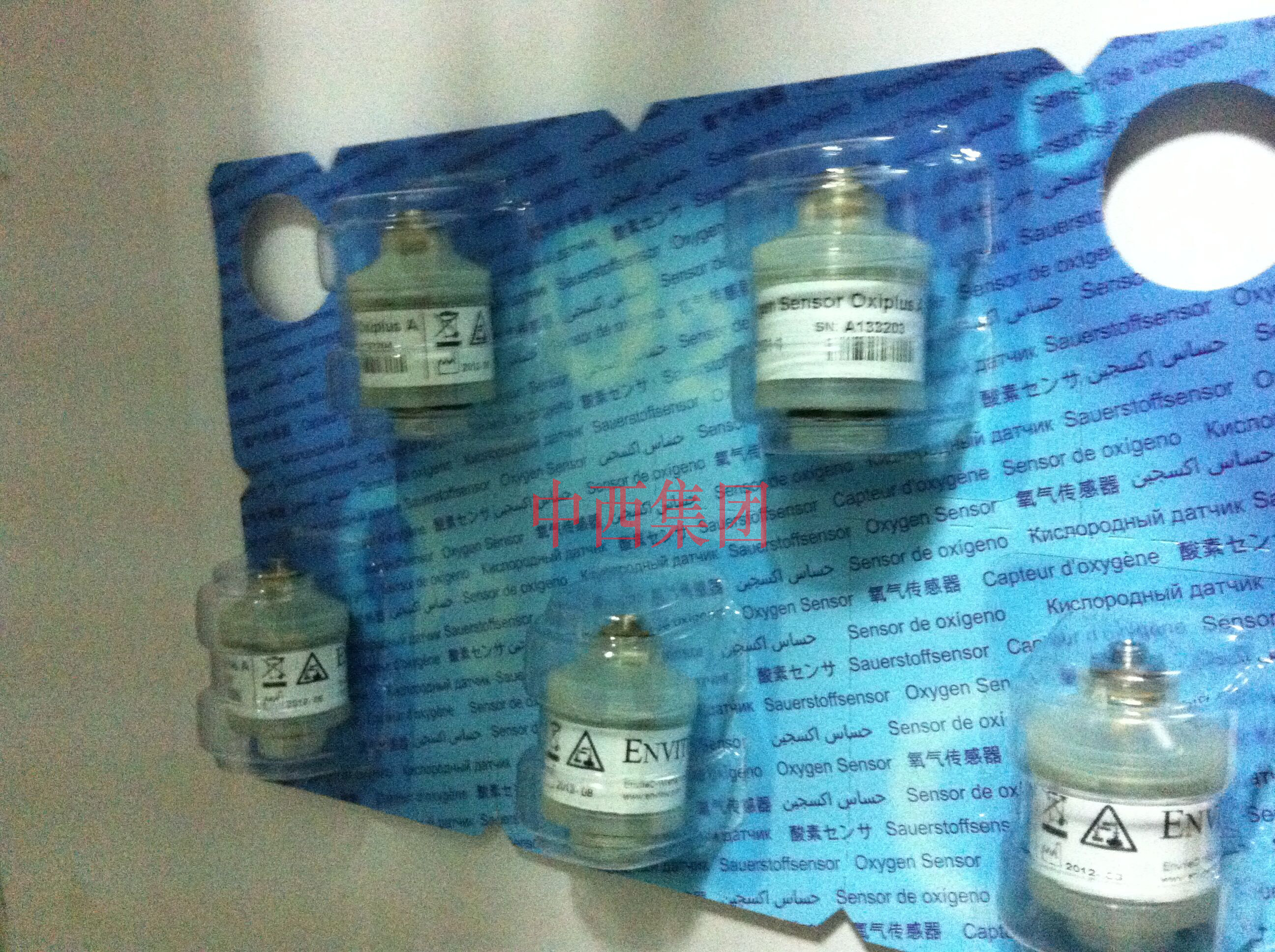

型号:DG22/OOA101-1 库号：M401595 进口两线制氧电极（德国IT）A-02T升级款

进口两线制氧电极（德国IT）A-02T升级款 All specifications are applicable at standard conditions: 1013 hPa, 25°C dry ambient air 0 % to 100 % Oxygen

东方化玻（北京）科技有限公司成立于 2014 年，是实验设备、平台综合解决方案提供商。公司为国内企事业单位 提供高品质仪器仪表，实验设备以及整体解决方案。 公司与国内外多家世界生产商已建立长期合作关系。公司经营产品广泛，灵活满足不同事业单位和企业客户的差异化需求 以及快速创新的追求，产品故障率低，维护成本小，性能优异，售后服务完善。公司产品在行业内均拥有持续的应用历史并 经过市场实际应用检验。 坚持以持续技术创新为客户不断创造价值为经营理念，公司在产品研发方面投入比例逐年递增，目前自主研发并投入市场 的产品已达十余种，长期以来，公司一直按照标准，搭建实验室平台，构建高品质、高标准、持续创新的发展体系。 坚持稳步发展的管理理念，不断刷新自己在业内的记录。

进口两线制氧电极（德国IT）A-02T升级款
进口两线制氧电极（德国IT）A-02T升级款
进口两线制氧电极（德国IT）A-02T升级款


 All specifications are applicable at standard conditions:
 1013 hPa, 25°C dry ambient air
 0 % to 100 % Oxygen
 7 mV to 13 mV, or customs specific
 3 pin Molex
 3.5 mm Mono Jack
 0 % to 3.3 % Oxygen: ± 0.1 % absolute
 3.4 % to 100 % Oxygen: ± 3 % relative
 < 5 seconds to 90 % of final value
 < 40 seconds fall time from 20.95 % to
 0.1 % Oxygen (when 100 % Nitrogen applied)
 < 40 µV in 100 % Nitrogen
 < 0.1 % Oxygen response to:
 15 % CO2 balance N2
 10 % CO balance N2
 3000 ppm NO balance N2
 3000 ppm C3H8 balance N2
 500 ppm H2S balance N2
 500 ppm SO2 balance N2
 1000 ppm Benzene balance N2
- 0.03 % relative per % RH at 25°C
 proportional to change in Oxygen partial pressure
 built-in NTC compensation
 0°C to +50°C
 0 to 99 % RH non-condensing
 < 1 % Oxygen per month
 typically < -15 % relative over lifetime
 > 500.000 % Oxygen hours
-20°C to +50°C
 +5°C to +15°C
 ≥ 10 kOhms
 approximately 28 grams
 O O A 101 O O A 101-1
 Use the advantages of
 ENVITEC’s
 Automotive Oxygen
 Sensors
• PTB-A 18.10 approved
• Meet BAR 97
 requirements
• Manufactured according
 to EN ISO 9001 / 7.94
• Fast and reliable
 response
• Resistant to CO2
 contamination
• Excellent signal stability
• High product quality
• Short lead times
• Technical support
• 15 months warranty
 P/N:
 OOA101 01-00-0030
 OOA101-1 01-00-0031
 Measurement Range:
 Output in ambient air:
 Electrical Interface:
 Accuracy:
 Response time:
 Zero Offset Voltage:
 Cross Interference:
 Influence of Humidity:
 Influence of Pressure:
 Temperature Compensation:
 Operating Temperature:
 Operating Humidity:
 Long Term Output Drift:
 Life Time:
 Storage Temperature:
 Recommended Storage:
 Recommended Load:
