BURKERT流量计

BURKERT流量计，宝德有限公司，BURKERT涡轮流量计仪表运行时流量范围应在20%-70%之间。如果长期低限运行或高限运行都会对计量有影响;是否是用户用气负荷或用气设备发生了改变，应及时解决。

东莞快捷自动化设备有限公司主要经营产品有：SMC气缸，SMC电磁阀，SMC三联件，SMC增压阀，FESTO气缸，FESTO电磁阀,BURKERT电磁阀，BURKERT角座阀，BURKERT变送器，

BURKERT流量计，宝德有限公司
1.BURKERT涡轮流量计的通气和停气要求。通气顺序：保证流量计后端的阀门处于关闭状态;再缓慢开启流量计前端的阀门，确保升压速度≤35KPa/S;后缓慢开启流量计后端的阀门，使其从小流量下运行直至调节至需要值。整个过程保持有压启动。停气顺序：先缓慢关闭流量计后端阀门;再缓慢关闭流量计前端阀门。
2.防止长时间超量运行。超流量运行会严重影响使用寿命，降低计量精度，导致误差增大;(注意观察表头工况流量百分比不宜长时间超百分百)瞬时流量：从瞬时流量的观察，结合用户当时用气情况判断是否有小火不走，大火超量程现象。
3.注意温度、压力的数值。误差主要集中在压力、温度的检测精度两方面，在发现流量、温度、压力值与实际偏差较大或示值不稳定时，或与以前经验数值存在较大偏差时，要及时处理。
BURKERT流量计，宝德有限公司

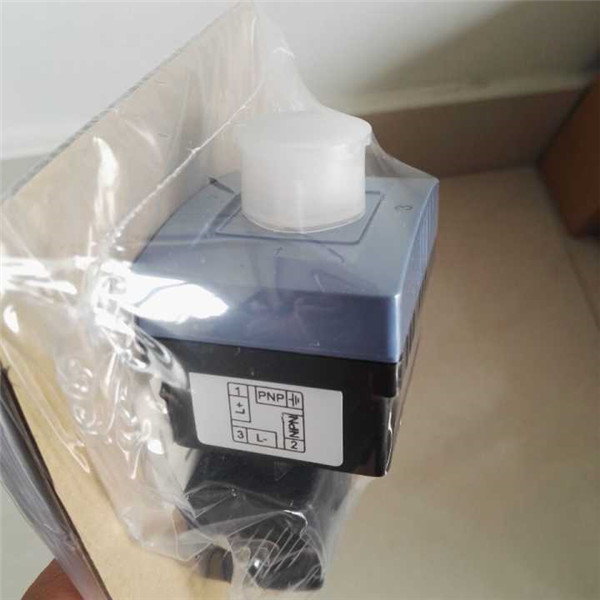

INLINE sensor-fitting with paddle wheel for flow measurement The sensor-fitting S030 has a built-in paddle wheel to measure the flow rate. When liquid flows through the pipe, the paddle wheel is set in rotation producing pulses which frequency is proportional to the flow rate. The Bürkert ”INLINE Quarter-turn” technology is a construction ensuring a leakage free operation. The paddle wheel rotation (permanent magnets included in the wheels) is detected contactless through the sensor-fitting wall. The transmitter can be snapped-on or removed without opening the pipe or interrupting the process. The Bürkert Quarter-turn technology General data Pipe diameter DN06...DN65 Measurement range 0.5 … 1200 l/min Flow velocity 0.3 … 10 m/s (see flow diagram) Measurement error Teach-In (via a remote transmitter) Standard K-factor ± 1 % of Reading1) (at the teach flow rate value) ± 2.5 % of Reading1) Linearity1) ± 0.5 % of F.S.* Repeatability1) ± 0.4 % of Reading Process connections metal  Plastic Internal or external thread, weld ends, Clamp or flange True union, spigot or external thread Materials Seal Body  Screws  Paddle wheel Shaft and bearings FKM or EPDM (depending on version, see ordering chart) Stainless steel (316L - 1.4404), brass (CuZn39Pb2) ,  PVC, PP, PVDF Stainless steel (316L - 1.4404) PVDF (PP on request or stainless steel, see data sheet 8030HT) Ceramics (Al2O3) Medium data Medium temperature 0 … + 50 °C (+ 32 … + 122 °F) for sensor-fitting in PVC 0 … + 80 °C (+ 32 … + 176 °F) for sensor-fitting in PP - 15 … + 100 °C (+ 5 … + 212 °F) for sensor-fitting in stainless steel, brass or PVDF Medium pressure (max.) metal  Plastic see pressure/temperature chart PN16 (232.16 PSI) (PN40 (580.4 PSI) on request) PN10 (145.1 PSI) Fluid properties Pollution  Viscosity clean, neutral or slightly aggressive, solid-free liquids max. 1 %, size of particles 0.5 mm max. 300 cSt. max. * F.S. = Full scale (10 m/s) 1) Under reference conditions i.e. measuring fluid = water, ambient and water temperature = 20 °C, a
BURKERT流量计，宝德有限公司
