价格：电议
所在地：广东 东莞市
型号：Cobra 3D Laser Profile Scanner
更新时间：2024-09-05
浏览次数：1568
公司地址：中国广东，重庆，昆山，上海，深圳，香港
张人雷(先生) 总经理
东莞市天测光学设备有限公司（TianCe Optical Equipment Co.,LTD.）是一家专业从事测量仪器销售和服务的高新技术企业。公司坐落在中国制造业名城广东省东莞市.公司本着“诚信、专业、务实、创新”的经营理念，坚持“以质量求生存、以信誉求发展”为企业宗旨,为客户提供高质低价的产品和服务,获得珠三角客户广泛好评。
公司专业从事美国QVI产品、OGP影像测量仪，VIEW影像测量仪（中国区总代）、法国Keron 关节臂三坐标测量仪、等著名品牌测量仪器的销售、安装、维修、校正、保养、升级等服务。公司拥有完善的样品测试中心和方案评估实验室,可为客户提供完善的测量解决方案,公司附设200平米的机器展示中心,可为企业，学校及研究机构提供三维尺寸测量，三维激光扫描，测量仪应用培训等服务。
|
Cobra |
2D |
3D |
|
测量范围 (XY) |
50 mm(Y) |
50 mm(Y) x 100 mm (X) |
|
zui小步长 |
0.001 mm |
0.001 mm |
|
传感器类型 |
DRS 300 |
DRS 500 |
DRS 2000 |
DRS 8000 |
|
捕获范围 (Z) |
0.3 mm |
0.5 mm |
2 mm |
8 mm |
|
精度* (µm) |
1.0 |
1.0 |
10.0 |
40.0 |
|
光斑尺寸 (µm) |
7 - 12 |
16 - 23 |
32 - 48 |
60 - 85 |
|
相隔距离** (mm) |
17 mm |
17 mm |
31.5 mm |
50 mm |
*捕获范围内的精度
**相隔距离是指传感器的zui低点到Z轴捕获范围中心的距离.

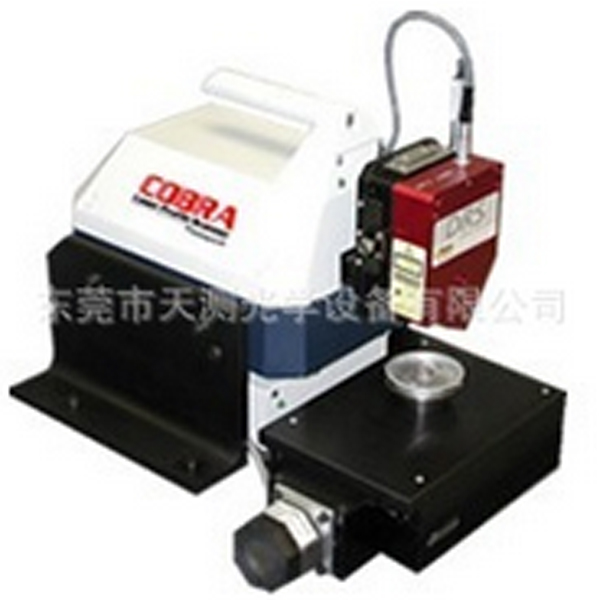

Cobra 3D Laser Profile Scanner
Area Profiling for More Information
Cobra™ 3D adds a motorized X axis to produce scans over an area as large as 2" x 2".
Scan-X® software makes it easy to scan and analyze the results.
Features:
Cobra 3D uses DRS™ (Digital Range Sensor) technology, motorized X and Y axis motion, a heavy duty granite base, and Scan-X software.
Its Scan-X software makes scanning easy. View and analyze scans for the dimensional information you need. The heart of the system is field proven DRS technology, combined with accurate motor control, and data analysis software. Since Cobra 3D scans by moving the DRS sensor over the surface, no special fixturing is required.
|
Specifications 6 |
|
Standard co |
Cobra Laser Profile Scanner with motorized X axis stage, mounted to granite plate; one DRS sensor (see below); Scan-X software |
|
Data rate |
1000 points per second; user co |
|
DRS-300 Sensor |
5 µinch dynamic resolution with 0.012" range |
|
DRS-500 Sensor |
5 µinch dynamic resolution with 0.019" range |
|
DRS-2000 Sensor |
40 µinch dynamic resolution with 0.078" range |
|
DRS-8000 Sensor |
160 µinch dynamic resolution with 0.315" range |
|
Max. readings per scan |
5000 |
|
Max. X scan length |
4.0" (100 mm) |
|
Max. Y scan length |
2.0" (50 mm) |
|
Z adjustment range |
2.0" (50 mm) |
|
Min. step size |
0.00004" (0.001 mm) |
|
Options |
PC workstation (call for latest details), calibration standard, additional DRS sensors |
|
Power requirements |
100 - 240 vac, 50 - 60 Hz, 2.0 amps |
|
Throat depth (base to laser spot) |
2.75 - 4.75" (70 - 120 mm) |
|
Dimensions |
20 x 24 x 16" (500 x 610 x 400 mm) |
|
Weight, approximate |
175 lb(80 kg) without computer |
|
Key Features and Options 6 |
|
Video Camera Option |
|
Equip your Cobra with a video camera for real-time imaging. |
|
Applications |
|
