产品简介
产品型号:YP4000系列通用型压力传感器/变送器
公司简介
淄博佰思通自控仪表有限公司专业设计、制造各类流体控制阀;公司在全体员工的努力和各大经销商、使用配套单位的大力支持下,有了较大发展。在全国中心城市基本已建立了销售网点和办事处,能为你提供售前售后服务。
公司同时授权代理三力信电磁阀、环工变送器、赛尔斯传感器,美国GC VALVES电磁阀、德国Muesen变送器,台湾Kimax执行器、电动阀等品牌。
公司机械设备精良、加工工艺先进、检测手段完备、员工业务素质良好,大专以上学历占全体员工的80%以上;我们的技术工程师可以为您进行特殊规格和新产品的开发设计、制造,技术咨询等服务。
“达则兼善天下,实则恒心如一”。公司将始终遵循自主创新和专业服务的方向,持续提升核心竞争力,为客户创造更大价值。
Zibo Stone Instrument Co.,Ltd. Specializes in designing and manufacturing all kinds of fluid control valves; The company has been developed greatly through the efforts from the staffs and great cooperation form the big distributors and related units. A lot of sales chain stores and offices have been established at the main cities in the whole country basically,which can provide you with services of before-sale and after-sale.
The company also authorized agent Sanlixin Solenoid Valve , Ring for transmitter , Saiersi sensor, the GC VALVES in USA , Muesen transmitter in Germany, Kimax actuators in TaiWan, Electric valve and so on brand.
The company has superior mechanical equipments,advanced processes,complete test methods,well business qualifications, especially technicians and administrative personnel being high education are occupied more than 80% in the staffs.Some specific and new products can be developed made,consulted about the techniques by our company if you have some requests.
“ To benefit all the people in the world,but in reality if perseverance”The company will always follow the independent innovation and professional services direction, continue to improve the core competence ,to create more value for customers.
展开
产品说明
产品型号:YP4000系列通用型压力传感器/变送器 |
|

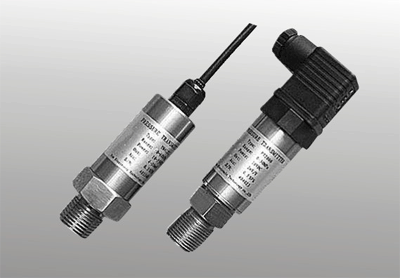

产品图片:

材质:不锈钢
|
|
性能特点:
|
※ 空气压缩、冷冻系统
※ 液压、气动检测控制系统
※ 工业自动化与过程控镧
※ 楼宇自控、恒压供水
※ 机车制动系统、热电机组
※ 石化、环保
※ 轻工、机械、冶金
※ 食品、医药
|
|
简介 |
YP4000幕列压力传摩器座送器.采用的.高稳定传感器组件.配接高可靠性电路及补偿措施.融合我公司完善的生产工艺精制而成。具有精度高、温漂小、抗干扰能力强、工作可靠稳定等特点。
该产品有多种接口形式和接线方式.能zui大限度的满足客户需要.适用于各种测量控制设备配套使用。
|
|
|
技术参数:
|
量程:-0.1~200MPa |
精度:0.1%FS、0.25%FS、0.5%FS、1.0%FS |
供电电压:传感器+3~+15VDc |
变送器+24VDC、+12VDC、+5VDC; |
输出信号:传感器1.0、1.5、2.0mv/v; |
变送器4~20mA(两线)、0/4~10/20mA(三线)、 |
0/0.5/1~4.0/4.5/5.0/10.0V(三/四线); |
负载能力:电流型≤500Ω;电压型≥100KΩ |
零点误差:±0.5%FS; |
工作环境:-20℃~70℃,≤85%RH; |
储存环境:-40℃~85℃,≤90%RH; |
安全过载能力:150%; |
外壳材料:316不锈钢; |
注:除非特别说明,所有参数指标在25℃测取。 |
|
|
结构图:
|
|
