产品说明
| 产品型号:PY202/YM202智能压力表 |
| |

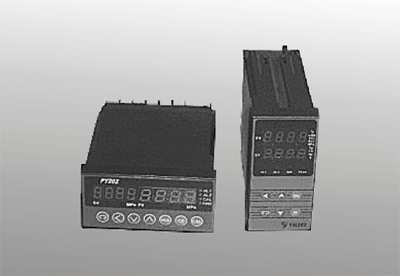

产品图片:
|
| |
|
性能特点:
|
|
※ 1、模拟、控制输出多种选择
※ 2、压力上限现场按键修改
※ 3、峰值保持功能
※ 4、按键软件锁定,防止现场误操作
※ 5、双排四位LED数码管.过程,设定值显示直观
※ 6、抗电磁干扰能力强
※ 7、多种外形尺寸供用户选择
※ 8、工作方式.连续方式
|
| |
| 简介 |
|
与高温熔体压力传感器配套使用。广泛应用于石油、化纤、塑胶、食品、制药等行业对熔体压力的测量与控制:
与普通压力传感器配套使用。广泛应用于供水、食品、制药、冷机等行业常、中温状态下的压力测量与控制:
与其它类型传感器配套使用。用于(张)力、重量、位移、扭矩、液位等物理量的测量与控制。
|
| |
| |
|
技术参数:
|
| |
精 度: |
0.2%、0.1%、0.05% |
| |
内分辩率: |
32000 |
| |
显示分度: |
1、2、5(内部参数Pdv决定) |
| |
模拟输出: |
两路0/4~20MA、或0/1~5/10V |
| |
报警范围: |
0~配套传感器量程 |
| |
输出控制: |
两路继电器在:250VAC× |
| |
开口尺寸: |
92×92mm、92×44mm、44×92mm |
| |
电 源: |
85~265VAC、48-62Hz、8W |
| |
工作环境: |
-20~55℃、≤90%RH |
| |
储存环境: |
-40~85℃、≤95%RH |
|
| |
|

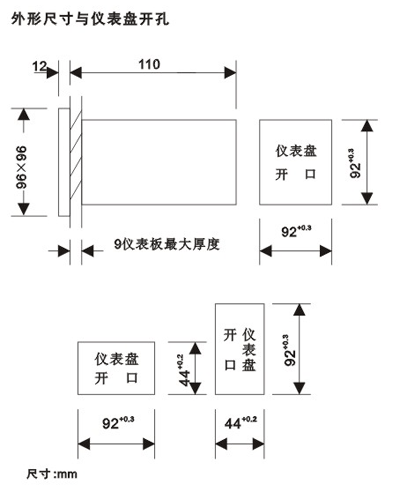

外形尺寸与仪表盘开孔:
|
|
|
选型指南
|
| 商标 |
|
说明 |
PY202
MY202 |
-□□ |
-□ |
-□ |
-□ |
-□ |
-□ |
-□ |
智能测量控制仪 |
| 量程 |
** |
|
|
|
|
|
|
与配套传感器量程相同 |
| 外形尺寸 |
|
S |
|
|
|
|
|
96×96mm |
| H |
|
|
|
|
|
96×48mm(横式) |
| V |
|
|
|
|
|
48×96mm(立式) |
模拟输出
(比例式) |
|
0 |
|
|
|
|
无模拟输出 |
| 2 |
0~5V |
| 3 |
1~5V |
| 4 |
0~10mA |
| 5 |
4~20mA |
| 8 |
特殊要求 |
| 输入类型 |
|
T |
|
|
|
应变电阻式传感器 |
| S |
扩散硅压阻式传感器 |
| C |
陶瓷压阻式传感器 |
| 供电方式 |
|
G |
|
|
+24VDC |
| D |
+12VDC |
| X |
220VAC(线性电源) |
| W |
85~265VAC(开头电源) |
| 控制方式 |
|
N |
|
无 |
| H |
一报警(上限) |
| L |
第二报警(下限) |
| B |
一、第二报警(上、下限)带式 |
| 测量精度 |
|
|
|
| 2 |
0.2 |
| 1 |
0.1 |
| 5 |
0.05 |
注:对外壳为H、V的PY202/YM202的表,无模拟输出。
定货举例
YM202-50MPa-H-5-T-W-B-2
YM202智能压力表.配套传感器量程为50MPa,96×96mm外形.模拟输出为4-20mA.传感器为应变电阻式.
220VAC开关电源供电。继电器上限报警并有状态发光二管指示。辅度为0.2%。
|
