产品说明
| 产品型号:CS-54 型 称重传感器 |
| |

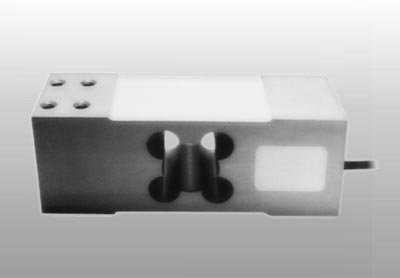

产品图片:

材质:铝合金
|
| Materials:Aluminum |
|
性能特点:
|
|
※ 采用铝合金材质,无色阳化处理,胶封。
※ 适用于各种料斗,定值等计量秤。
|
| |
| 量程(kg): |
| 50,100,150,200,250,300,350,500,750,1000. |
| |
|
结构图:
|
|
|
| |
技术参数(Techincal Parameter):
|
| 灵敏度 |
Sensitivity |
2±0.1mv/v |
| 非线性 |
Non linearity |
0.03%FS |
| 滞 后 |
Hysteresis |
0.03%FS |
| 重复性 |
Repeatability |
0.01%FS |
| 蠕 变 |
Creep |
±0.02%FS/30min |
| 蠕变恢复 |
Creep recovery |
|
| 零点输出 |
Zero baiance |
±2%FS |
| 零点温度系数 |
Zero temperature |
0.03%FS/10℃ |
| 额定输出温度系数 |
Rated output temperature coefficient |
|
| 输出电阻 |
Output resistance |
350±5Ω |
| 缘电阻 |
Insuiation resistance |
≥5000(100VDC) |
| 供桥电压 |
Supply Voitage |
|
| 允许温度范围 |
Safe temperature range |
-35~+65℃ |
| 允许过负荷 |
Safe overload |
120%FS |
| 防护等级 |
Denfend grade |
IP65 |
| 连接方式 |
Method of connecting wire |
输入input:红Red(+)黑Black(-)
输出output:绿Green(+)白White(-) |
|
|
|
