价格：电议
所在地：陕西 西安市
型号：MT8121T
更新时间：2011-06-29
浏览次数：1947
公司地址： 西安市长安北路新文巷98好1-401室
郭媛媛(女士) 电子商务
| ◆Specifications | |
| Display |
12.1" |
| Brightness |
400 cd/m2 |
|
Color |
65536 color |
|
Contrast Ratio |
500:1 |
|
Resolution(WxH) |
800x600 |
|
Back Light |
CCFLx2 |
|
Touch Panel |
4 wires resistive type |
|
Touch Accuracy |
2mm |
|
Surface Hardness |
4H |
|
Serial Interface |
COM1(RS232/RS485 2w/4w) COM2(RS232) COM3(RS232/RS485 2w) |
|
Processor |
32 bit RISC CPU 200 MHz |
|
Ethernet Port |
10/100 Base-T |
|
USB Interface |
USB 2.0 x 3 |
|
Sound Output |
Line Out x1 |
|
Flash Memory |
32MB |
|
DRAM |
64MB |
|
Recipe Memory |
YES |
|
CF Card Interface |
YES |
|
RTC |
YES |
|
System Diagnostic |
Power failure detection |
|
Input Power |
24 VDC /- 5% |
|
Power Consumption |
500mA@24VDC |
|
Panel Cutout (WxH) |
303x230mm |
|
Weight |
Approx 2.1kg |
| ◆General Specification | |
| CE | Complies with EN50081-2 and EN50082-2 standards |
| FCC | Complies with FCC Class A |
| Voltage Resistance | 500 VAC (1 min) |
| Isolation Resistance | Exceed 50MΩ at 500 VDC |
| Vibration Endurance | 10 to 25 Hz (X,Y,Z direction 2G 30minutes) |
| Protection Structure | IP65 front panel (O ring seal) |
| Storage Temperature | -20~60°C |
| Operating Temperature | 0~45°C |
| Operation Humidity | 10-90% RH (non-condense) |
| Enclosure | Plastic |
|
|
|
|

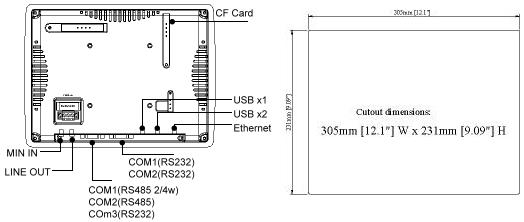

开孔尺寸 |
|
